    Q35Y-20 Hydraulic Ironworker Machine Sheet Metal Hole Punching Machine

    Ask Lasest Price
    Brand Name : PSL, OEM
    Model Number : Q35Y-20-90T
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 30 sets per month
    Delivery Time : 15-30days
    Certification : CE ISO
    • Product Details
    • Company Profile

    Q35Y-20 Hydraulic Ironworker Machine Sheet Metal Hole Punching Machine

    Sheet metal Punching hole Hydraulic Ironworker machine


    Features of Ironworker,


    Using hydraulic transmission,is China's currently latest Multi-functional United punching machine products,can fabricate plate Flat steel,square steel,round steel,angle steel,chanel steel,I-beam to cut,punch,shear modulus and shear block device is equipped with.


    Functions Tree of Ironworker,



    Assemblings,


    The following 9 sets of moulds and blades are installed in the machine:

    1. 5 sets of round hole punching dies

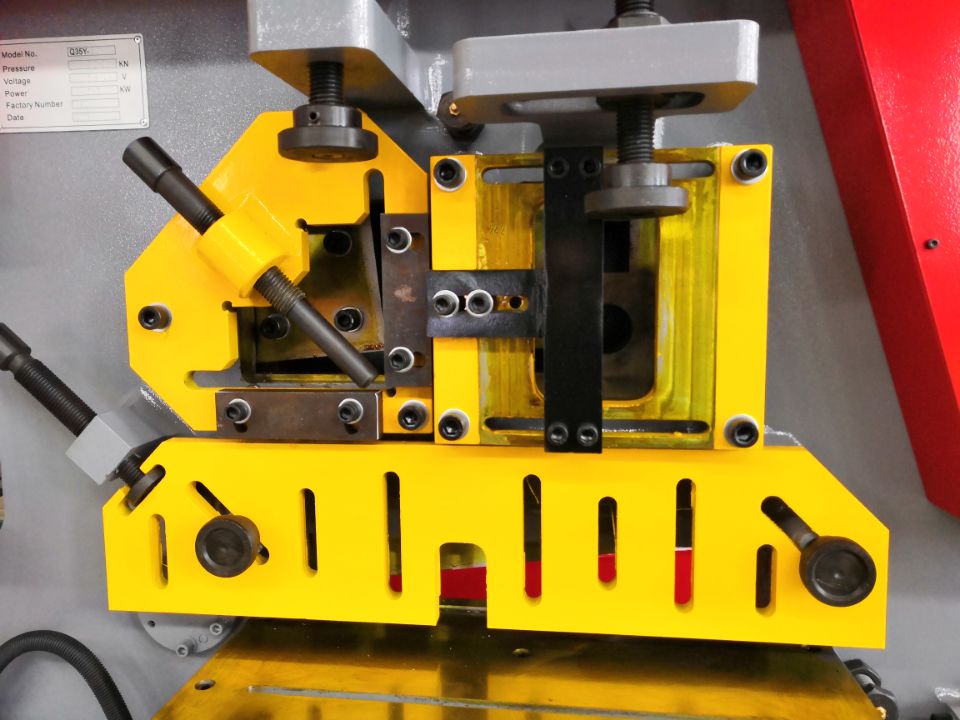

    2. A set of angle steel cutting blade

    3. A set of square and round bar cutting blade

    4. A set of flat-bar shearing blade

    5. A set of notching blade.

    Other moulds and blades should be ordered and paid additionally.


    Main Technical parameters


    Model

    Q35Y

    -16

    Q35Y

    -20

    Q35Y

    -25

    Q35Y

    -30

    Q35Y

    -40

    Q35Y

    -50

    Processing

    Capacity

    (KN)

    6009001200160020002500

    Material

    Tensile Strength

    (Mpa)

    ≤450≤450≤450≤450≤450≤450

    Ram Stroke

    (mm)

    80808080100100

    Number

    of Stroke

    (times/min)(mm)

    11-2012-208-186-166-166-12

    Throat Depth

    (mm)

    300355400600530600
    Shear Angle

    Flat She

    aring

    Max

    Shearing

    Capacity

    (thickness*

    width)(mm)

    16×25020×33025×33030×33540×33550×300
    8×40010×48016×60020×60030×60030×750

    Bar She

    aring

    Square

    Bar

    (mm)

    40×4050x5050×5055×5560×6065×65

    Round

    Bar

    (mm)

    455060657080

    H-beam

    (mm)

    100×100120×120175×175200×200250×250

    C-channel

    (mm)

    120×

    53×5.5

    160×

    63×6.5

    200×

    75×9

    280×

    86×11.5

    300x

    89x11.5

    320x

    92x12

    I-beam

    (mm)

    120×

    74×5

    160×

    88×6

    200×

    75×9

    280×

    124×10.5

    300x

    130x13

    320x

    130x13

    Angle Shearing

    90°shearing

    (mm)

    120×

    120×

    12

    140×

    140×

    12

    160×

    160×

    14

    180×

    180×

    16

    200×

    200×

    16

    200×

    200×

    18

    45°shearing

    (mm)

    60×

    60×8

    70×

    70×10

    60×

    60×7

    80×

    80×8

    80×

    80×10

    100×

    100×12

    Hole Punching

    max

    diameter

    of punching

    (mm)

    ф25ф30ф35ф38ф40ф45

    Punching thickness

    (mm)

    162025283540
    Motor(KW)5.57.5111518.518.5

    Dimension

    (mm)

    1740×

    810×

    1830

    1950×

    900×

    1950

    2355×

    960×

    2100

    2800×

    1050×

    2450

    2900×

    1110×2500

    3200×

    1440×2500

    Remarks:Q35Y series is standard types(Angle steel shearng

    station and Flat bar shearing station with manual pressing hold)


    Kinds of molds and blades
