Servo main motor Automatic hydraulic Guillotine shearing machine
Main Features and characteristics,
1. Using computer CAD design. The frame, blades slider and other important parts are analyzed by ANSYS finite element analysis software to ensure the rationality and strength of the frame and structure. Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.

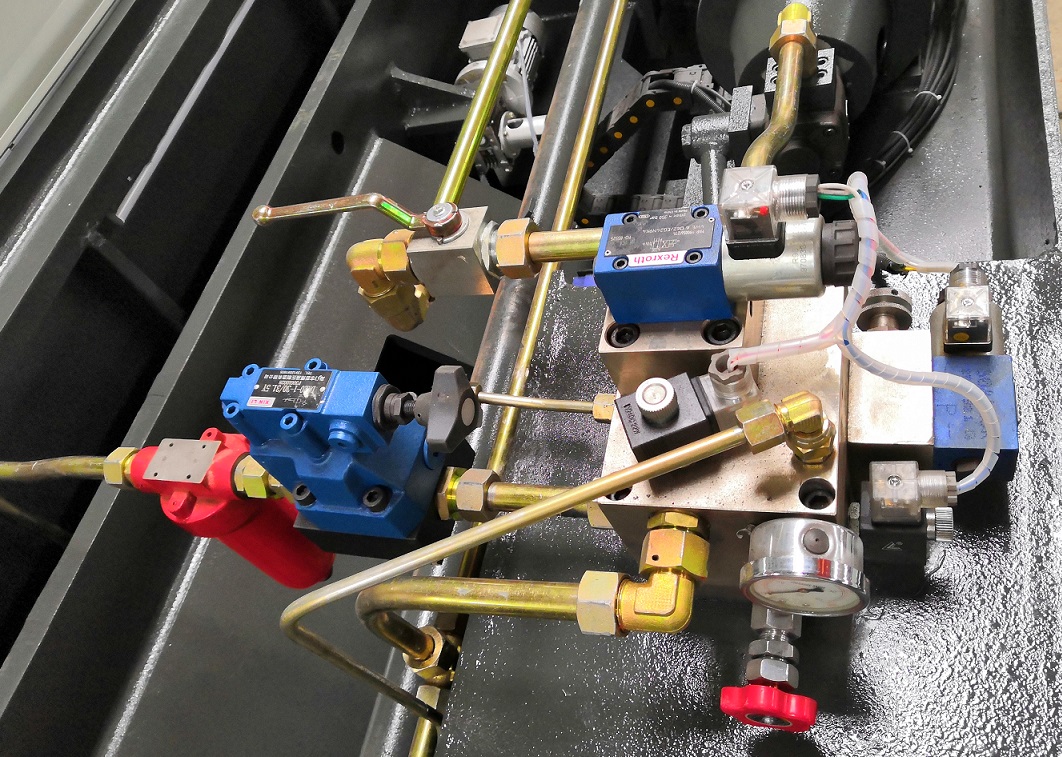

2. Introducing advanced European technology and adopting integrated hydraulic control system, it has good reliability. more reliable and easy for maintenance.Siemens motors, Allead pumps and Rexroth hydraulic valves are used ont the Shear.
3. The new high-power servo motor is applied to our hydraulic plate shearing machine. When the machine is not working, the motor is in the stop state, which can not only prevent the oil temperature of the oil tank from rising too fast, but also save electricity, save energy and environmental protection and reduce production costs.
4. The Hydraulic Shear is a variable Rake Action machine which is produced in a variety of cutting lengths & capacity. Back-gauge beam moving is controlled by NC/CNC controller. Cutting angle and up/low blades clearance can be operated by NC/CNC controller according to different plates thickness. Ball screw and linear guider are used in Back-gauge. It improves the shearing effective and shearing quality.
5. High accuracy back gauge with ball screw and linear guider.The distance of the backgauge is adjusted by AC motor or servo motor and is easy adjusted and displayed by NC controller E21s or TP-07 or Delem DAC310 360T.

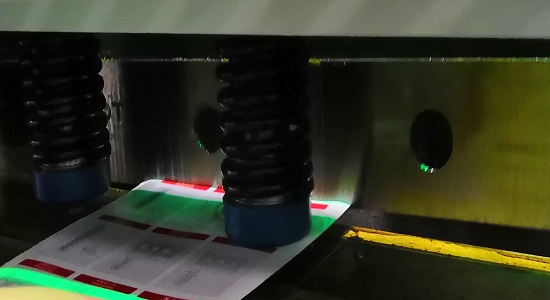

6. Equipped lighting-alignment, so easy to align when shearing. special for some users who needs measure different sizes in two sides firstly, and then cut down.
6. It adopts professional gate type tool holder structure. Safe fences have been assemblied onto the machine to avoid hands enter the holddown and cutting area, and ensure the operation safety.
Specifications of Shear QC11K-6x3200,
| Specification | QC11K-6x3200 |
| Max. Cutting thickness | 6mm (Mild steel) 3mm (stainless steel) |
| Max. Cutting width | 3200mm |
| Strokes | 9-30/min |
| Backgauge stroke | 10-750mm |
| Shear angle | 0.5-2.5Degree |
| Depth of throat | 150mm |
| Height of working table | 750mm |
| Width of working table | 600mm |
| Main servo motor power | 7.5kw |
| Dimensions: | 3750x1770x2150 |
| Net weight Appro. | 5.8Tons |
| Volt. | 380V,50HZ |
Standard configures,
| Optional model | Manufacturer | Remarks |
| CNC system | E21s
TP-07
DAC310
DAC360 |
ESTUN
DELEM | |
| Hydraulic system | Main solenoid valves | Rexroth Jianhu | |
| Back gauge | AC motor
Servo motor (Optional) Ball screw + Linear guider | PSL
Taiwan | |
| Oil pump | Inner Gear oil pump | Allead | |
| Main power | Servo motor (Optional) | VECHI | |
| Front work table | Special pallet and ball rack | PSL | |
| Security | Front steel fences + Back safe sensor protection (Optional) | PSL | |
| Back supporting device | Pneumatic support frame (Optional) | PSL | |
| Blade clearance | Motorized
NC controller operating | PSL | |
| electric | Schneider Relay,Contactor | Schneider | |
| Foot switch | Korean Kaikun vertical switch | Korean Kaikun | |
| Deep throat | 150mm -500mm(Optional) | PSL | |
QC11K series main parameters,
| Model | Max. Tkn. | Yield strength | Max. Length | Angle | X.Stroke | Power | L*W*H(mm) | Weight |
| QC11K-6*2500 | 6mm | ≤450kN/cm | 2500mm | 0.5-2.5° | 750mm | 7.5kW | 3140*1740*2040 | 4800Kg |
| QC11K-6*3200 | 6mm | ≤450kN/cm | 3200mm | 0.5-2.5° | 750mm | 7.5KW | 3750*1770*2150 | 5800Kg |
| QC11K-6*4000 | 6mm | ≤450kN/cm | 4000mm | 0.5-2.5° | 750mm | 11KW | 4830*1840*2150 | 7500Kg |
| QC11K-6*5000 | 6mm | ≤450kN/cm | 5000mm | 0.5-2.5° | 750mm | 15KW | 5830*1840*2150 | 13000Kg |
| QC11K-6*6000 | 6mm | ≤450kN/cm | 6000mm | 0.5-3° | 750mm | 15KW | 6480*2100*2300 | 18000Kg |
| QC11K-8*2500 | 8mm | ≤450kN/cm | 2500mm | 0.5-2.5° | 750mm | 11KW | 3040*1700*1700 | 5500Kg |
| QC11K-8*3200 | 8mm | ≤450kN/cm | 3200mm | 0.5-2.5° | 750mm | 11KW | 3860*1700*1700 | 6200Kg |
| QC11K-8*4000 | 8mm | ≤450kN/cm | 4000mm | 0.5-2.5° | 750mm | 11KW | 4640*1700*1700 | 7900Kg |
| QC11K-8*5000 | 8mm | ≤450kN/cm | 5000mm | 0.5~3° | 750mm | 18.5KW | 5400*2400*2000 | 13500Kg |
| QC11K-8*6000 | 8mm | ≤450kN/cm | 6000mm | 0.5~3° | 750mm | 22KW | 6480*2100*2350 | 19000Kg |
| QC11K-8*8000 | 8mm | ≤450kN/cm | 8000mm | 0.5~3° | 750mm | 22KW | 8580*2130*2350 | 29500Kg |
| QC11K-10*2500 | 10mm | ≤450kN/cm | 2500mm | 0.5-2.5° | 950mm | 15KW | 3040*1800*1700 | 6500Kg |
| QC11K-10*3200 | 10mm | ≤450kN/cm | 3200mm | 0.5-2.5° | 950mm | 11KW | 3850*1830*1900 | 7500Kg |
| QC11K-10*4000 | 10mm | ≤450kN/cm | 4000mm | 0.5-2.5° | 950mm | 15KW | 4650*2100*2000 | 11000Kg |
| QC11K-10*5000 | 10mm | ≤450kN/cm | 5000mm | 0.5~3° | 950mm | 15KW | 5750*2100*2000 | 16000Kg |
| QC11K-10*6000 | 10mm | ≤450kN/cm | 6000mm | 0.5~3° | 950mm | 15KW | 6500*2100*2300 | 24000Kg |
| QC11K-10*8000 | 10mm | ≤450kN/cm | 8000mm | 0.5~3° | 950mm | 15KW | 6800*2100*2300 | 32000Kg |
| QC11K-13*2500 | 13mm | ≤450kN/cm | 2500mm | 0.5-2.5° | 1000mm | 15KW | 3285*1830*2390 | 7500Kg |
| QC11K-13*3200 | 13mm | ≤450kN/cm | 3200mm | 0.5-2.5° | 1000mm | 15KW | 3855*1830*2390 | 9500Kg |
| QC11K-13*4000 | 13mm | ≤450kN/cm | 4000mm | 0.5-2.5° | 1000mm | 18.5KW | 4850*1830*2390 | 12500Kg |
| QC11K-13*6000 | 13mm | ≤450kN/cm | 6000mm | 0.5~3° | 1000mm | 30KW | 6850*1930*2650 | 30000Kg |
| QC11K-13*8000 | 13mm | ≤450kN/cm | 8000mm | 0.5~3° | 1000mm | 30KW | 8950*2130*2850 | 46000Kg |
| QC11K-13*9000 | 13mm | ≤450kN/cm | 9000mm | 0.5~3° | 1000mm | 45KW | 9980*2130*2850 | 65000Kg |
| QC11K-13*10000 | 13mm | ≤450kN/cm | 10000mm | 0.5~3° | 1000mm | 45KW | 11050*2500*3100 | 85000Kg |
| QC11K-16*2500 | 16mm | ≤450kN/cm | 2500mm | 0.5~3° | 1000mm | 22KW | 3440*1940*2830 | 9500Kg |
| QC11K-16*3200 | 16mm | ≤450kN/cm | 3200mm | 0.5~3° | 1000mm | 22KW | 4010*1940*2830 | 11000Kg |
| QC11K-16*4000 | 16mm | ≤450kN/cm | 4000mm | 0.5~3° | 1000mm | 30KW | 5010*1980*2830 | 15500Kg |
| QC11K-16*5000 | 16mm | ≤450kN/cm | 5000mm | 0.5~3.5° | 1000mm | 30KW | 5900*2600*2830 | 25000Kg |
| QC11K-16*6000 | 16mm | ≤450kN/cm | 6000mm | 1~3.5° | 1000mm | 37KW | 6900*2600*2830 | 36000Kg |
| QC11K-16*8000 | 16mm | ≤450kN/cm | 8000mm | 1~3.5° | 1000mm | 45KW | 8900*2900*3430 | 75000Kg |
| QC11K-20*2500 | 20mm | ≤450kN/cm | 2500mm | 1~3° | 1000mm | 30KW | 3440*1980*2830 | 14000Kg |
| QC11K-20*3200 | 20mm | ≤450kN/cm | 3200mm | 1~3° | 1000mm | 30KW | 4010*1900*2830 | 17000Kg |
| QC11K-20*4000 | 20mm | ≤450kN/cm | 4000mm | 1~3.5° | 1000mm | 37KW | 4850*2600*2900 | 22000Kg |
| QC11K-20*6000 | 20mm | ≤450kN/cm | 6000mm | 1~3.5° | 1000mm | 55KW | 6700*3000*3000 | 54000Kg |
| QC11K-30*2500 | 30mm | ≤450kN/cm | 2500mm | 1~3.5° | 1000mm | 45KW | 3440*1900*2830 | 25000Kg |
| QC11K-30*3200 | 30mm | ≤450kN/cm | 3200mm | 1~3.5° | 1000mm | 45KW | 4200*1900*3000 | 34000Kg |
Remarks: This parameter is based on 2019 system. If the parameters are not updated in time, please understand nd contact with us by Chat online or email. THANKS.
